LYTW-1111F

Our company as the one of the biggest manufacture in China more than 15 years experience, we always put the quality at the first place. We will provide the professional service and best product for you. We accept OEM and customization. Hope to have opportunity with you.

Tel：+86-532-6866 5226

Specification
Feature

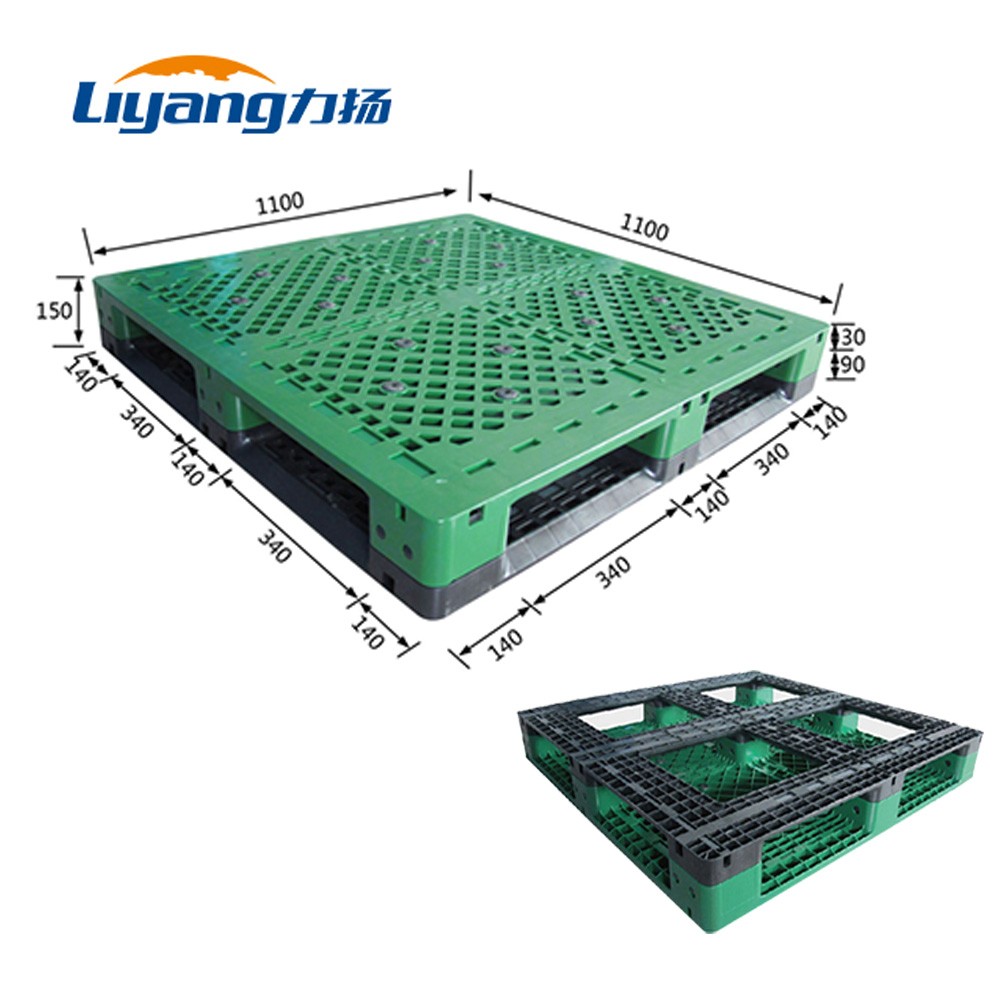

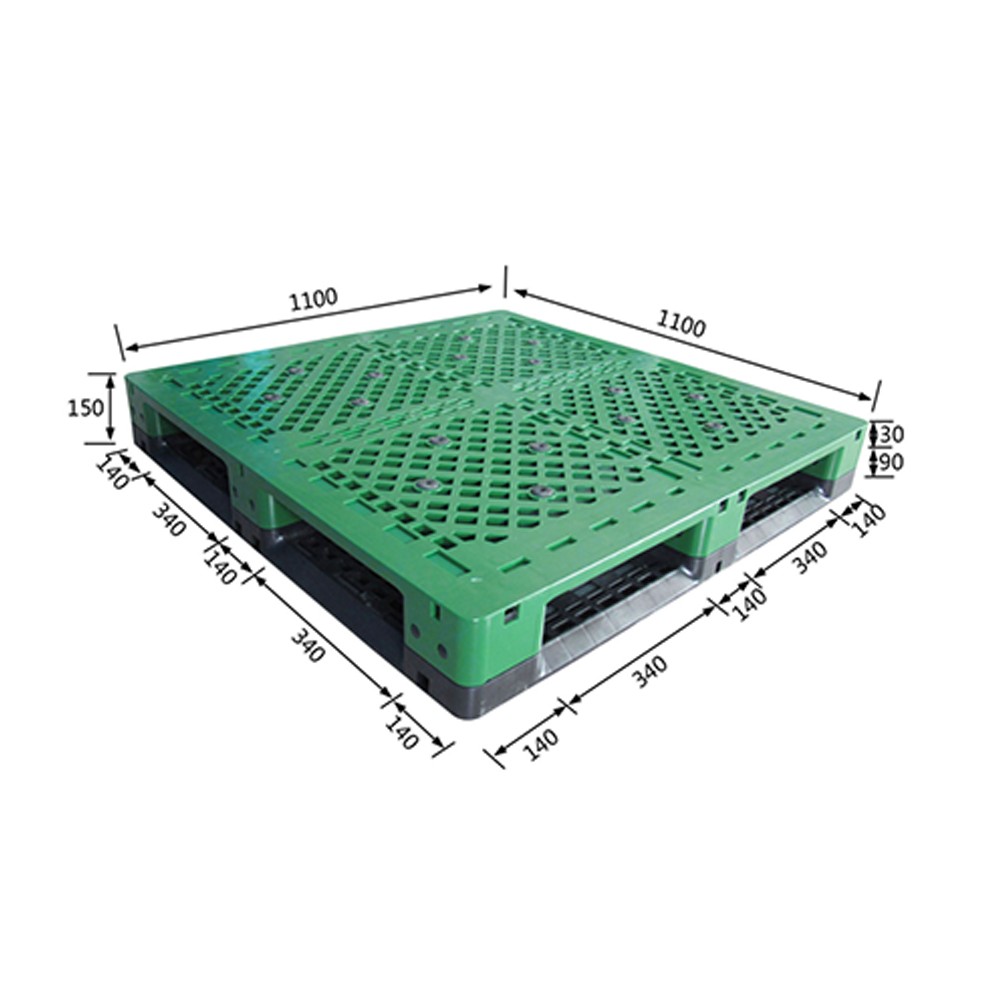

Dimension	11001100150mm
Material	100% virgin HDPE
Weight	31KG (18.1kg for plastic+12.88kg for steel tube)
Color	Green or Customized
Rating Load	Static Load	6000KG
	Dynamic Load	2000 KG
	Rack Load	1000KG
Operating Temperature	-30℃ to + 50℃
Logo	Customized
Structure Design	Top		Grilled Surface
	Bottom		Six Runner
	Molding Method		Injection Molding
	Fork Entry Way		4-way Entry
	Fork Opening Size		270mm(L) X90(H)mm
Combined with 14 piece steel tube inside reinforced
FCL	360Pieces/ 40 ‘HC 300Pieces/ 40 ‘GP 150Pieces/ 20 ‘GP

A.It have consiostent specification, demension and the load capacity will not affected by H2O.

B.It can resistant to acid, alkali, mositure,corrision.

C.This material is hygienic, no-polluted, safe for food, bervarge, pharmaceutical industry.

D.4 way entry design is suitbale to forklift, fork truck and such related equipments.

E.Anti- slip design with rubber mat can keep the products from slipping form the fork.

F.Rounder coner with reinforced design, one-injection molding technology with very smooth surface, no any nails and splinters, can protect the workers and goods.

G.It is an economic choice for long-time benefit. Recycle and easy to clean, no matter used hot wash, steam clean or chemically sanitaze.
