LYTW-1210E

Our company as the one of the biggest manufacture in China more than 15 years experience, we always put the quality at the first place. We will provide the professional service and best product for you. We accept OEM and customization. Hope to have opportunity with you.

Tel：+86-532-6866 5226

Specification Sheet
Features

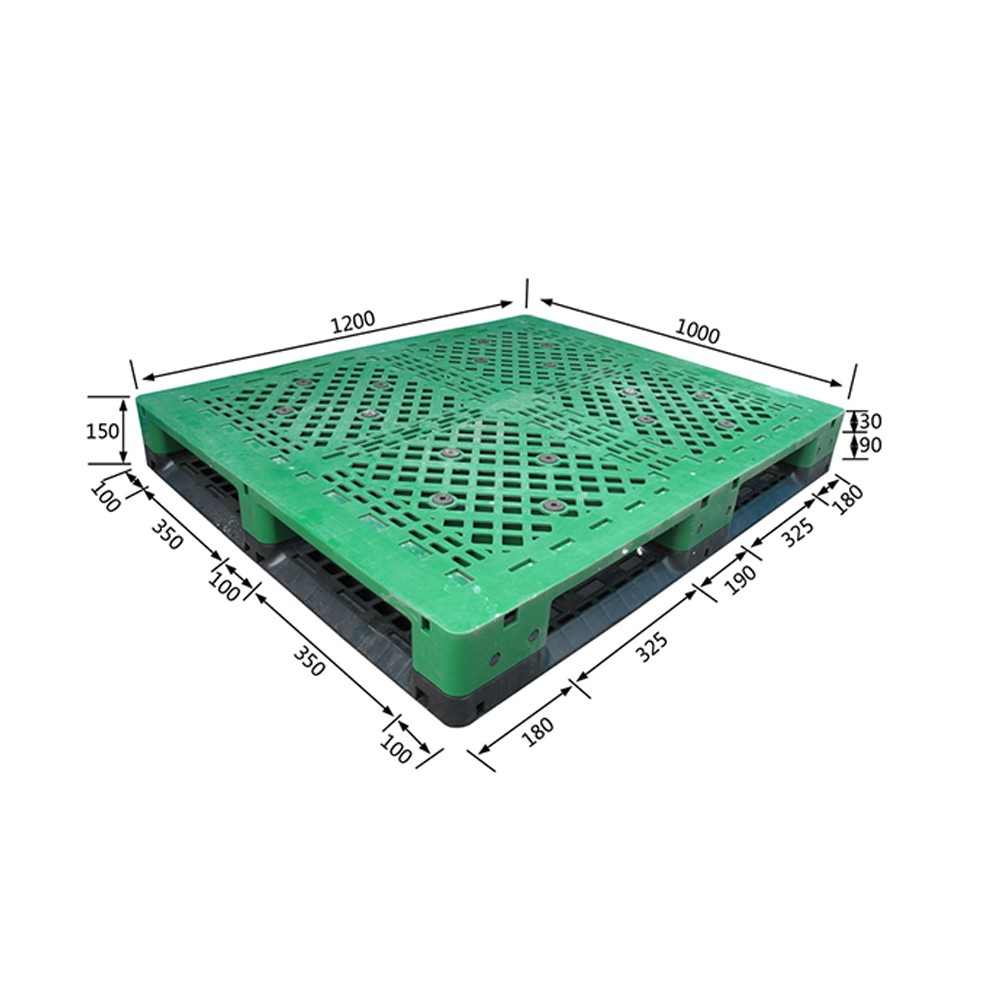

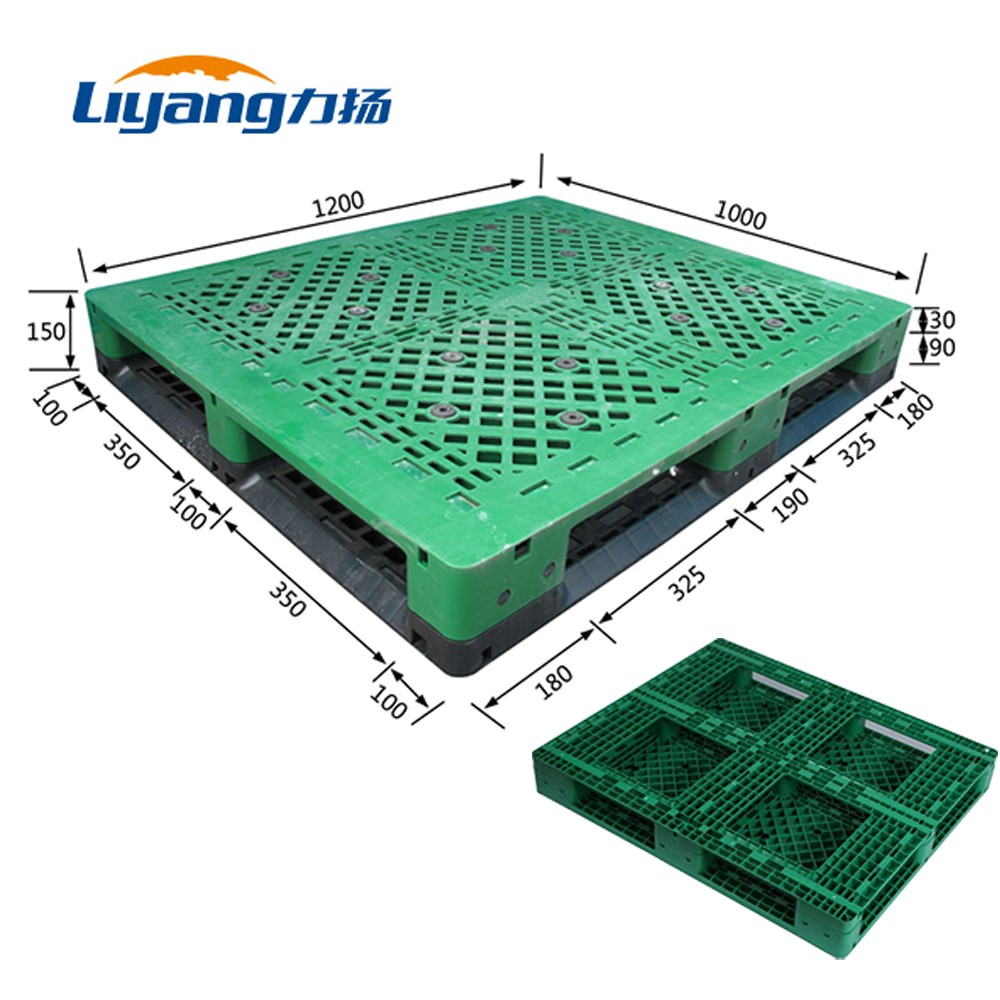

Out Size	1200mm×1000mm×150mm
Material	HDPE
Weight	18.8KG(Plastic Part Weight)+10.42KG(14 Steel Tubes Weight)
Color	Customized
Rating Load	Static Load	8000 KG
	Dynamic Load	2000 KG
	Rack Load	800 KG
Operating Temperature	(+50～-30)℃
Logo	Customized
Printing Craft	Molding
	Silk-screen Printing
Structure Design	Top		Grid Surface
	Bottom		Grid Surface
	Steel Reinforcement		Maximum 14 steel tubes inside
	Molding Method		Injection Molding
	Fork Entry Way		4-way Entry
	Fork Opening Size		35090mm 32090mm
FCL	360Pieces/ 40’HC 305Pieces/ 40’GP 145Pieces/ 20’GP

A.It have consistent specification, dimension and the load capacity will not affected by H2O.

B.It is resistant to acid, alkali, moisture,corrosion.

C.This material is hygienic, no-polluted, safe for food, beverage, pharmaceutical industry.

D.4 way entry design is suitable to forklift, fork truck and such related equipment.

E.Anti- slip design with rubber mat can keep the products from slipping form the fork.

F.Rounder corner with reinforced design, one-injection molding technology with very smooth surface, no any nails and splinters, can protect the workers and goods.

G.It is an economic choice for long-time benefit. Recyclable and easy to clean, no matter used hot wash, steam clean or chemically sanitize.

H.Steel tube inside reinforced can increase the load capacity and the safety for Rack System.

I. Color and Logo customized are accepted.

J.It is reinforced by maximum 14 steel tubes. The load capacity is up to the amount of the steel tubes. The more tubes, the bigger load capacity is.

K.It is combined by two parts, very stable.
