LYCW-1208

Our company as the one of the biggest manufacture in China more than 15 years experience, we always put the quality at the first place. We will provide the professional service and best product for you. We accept OEM and customization. Hope to have opportunity with you.

Tel：+86-532-6866 5226

Specification Sheet
Features

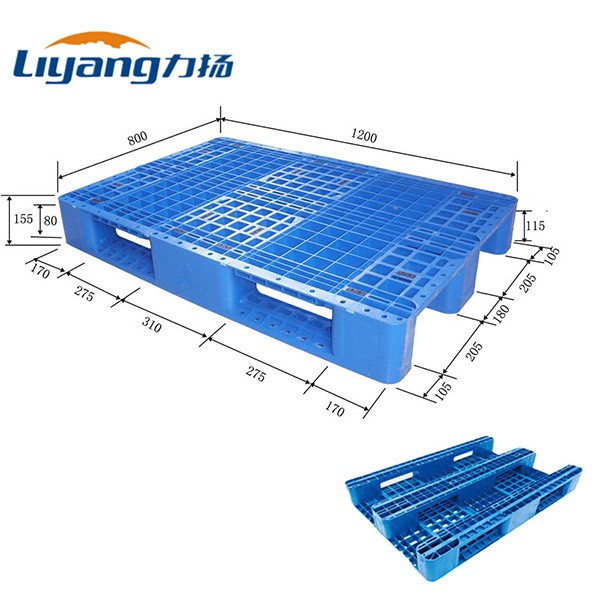

Out Size	1200mm×800mm×155mm
Material	HDPE
Weight	12.5KG+6.72KG(Steel Tubes Weight)
Color	Customized
Rating Load	Static Load	4000~6000 KG
	Dynamic Load	1000~1500 KG
	Rack Load	300~1000 KG
Operating Temperature	(+50～-30)℃
Logo	Customized
Printing Craft	Molding
	Silk-screen Printing
Structure Design	Top		Grid Surface
	Bottom		Grid Surface
	Steel Reinforcement		Maximum 8 steel tubes inside
	Molding Method		Injection Molding
	Fork Entry Way		4-way Entry
	Fork Opening Size		205x115mm 275x80mm
FCL	570Pieces/ 40’HC 485Pieces/ 40’GP 230Pieces/ 20’GP

A.It have consiostent specification, demension and the load capacity will not affected by H2O.

B.It can resistant to acid, alkali, mositure,corrision.

C.This material is hygienic, no-polluted, safe for food, bervarge, pharmaceutical industry.

D.4 way entry design is suitbale to forklift, fork truck and such related equipments.

E.Anti- slip design with rubber mat can keep the products from slipping form the fork.

F.Rounder coner with reinforced design, one-injection molding technology with very smooth surface, no any nails and splinters, can protect the workers and goods.

G.It is an economic choice for long-time benefit. Recyclable and easy to clean, no matter used hot wash, steam clean or chemically sanitaze.

H.Steel tube inside reinforced can incrase the load capacity and the safety for Rack System.

I. Color and Logo customized are accepted.
