LYCW-1212A

Our company as the one of the biggest manufacture in China more than 15 years experience, we always put the quality at the first place. We will provide the professional service and best product for you. We accept OEM and customization. Hope to have opportunity with you.

Tel：+86-532-6866 5226

Specification Sheet
Features

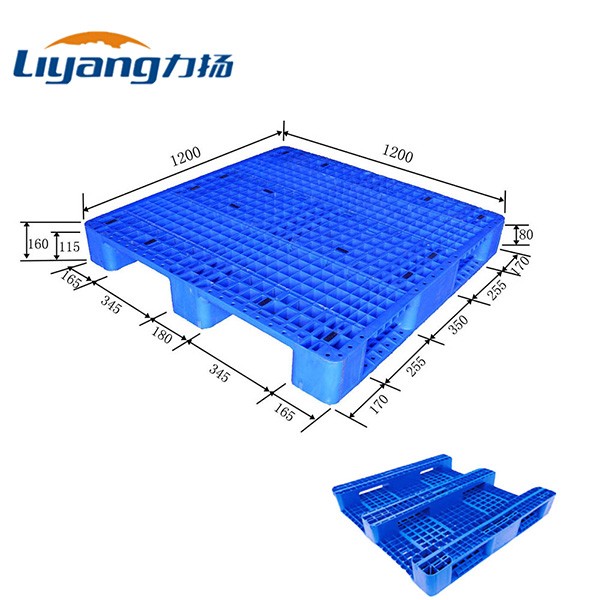

Out Size	1200mm×1200mm×160mm
Material	100% virgin HDPE
Weight	25.74KG ( 17.5kg(plastic weight) +8.24kg ( 8 piece steel tubes weight) )
Color	Customized
Rating Load	Static Load	4000-6000 KG
	Dynamic Load	1000-1500 KG
	Rack Load	300-1000 KG
Operating Temperature	-30℃ ~+ 50℃
Logo	Customized
Printing Craft	Molding
	Silk-screen Printing
Structure Design	Top		Gridding Surface
	Bottom		Three Runners
	Molding Method		One Piece Injection Molding
	Fork Entry Way		4-way Entry
	Fork Opening Size		25580&345115mm
	Optional		Maximum 8 steel tubes inside
FCL	390 Pieces/ 40’HC 330 Pieces/ 40’GP 160 Pieces/ 20’GP

A.It have consiostent specification, demension and the load capacity will not affected by H2O.

B.It can resistant to acid, alkali, mositure,corrision.

C.This material is hygienic, no-polluted, safe for food, bervarge, pharmaceutical industry.

D.4 way entry design is suitbale to forklift, fork truck and such related equipments.

E.Anti- slip design with rubber mat can keep the products from slipping form the fork.

F.Rounder coner with reinforced design, one-injection molding technology with very smooth surface, no any nails and splinters, can protect the workers and goods.

G.It is an economic choice for long-time benefit. Recyclable and easy to clean, no matter used hot wash, steam clean or chemically sanitize.

H.Steel tubes inside reinforced can incrase the load capacity and the safety for Pallet Racking System &ASRS System.

I. Good ROI. Compared with wooden pallet, plastic pallet can save at least 30% cost for long term benefits.

J. Color and Logo customized are accepted.
